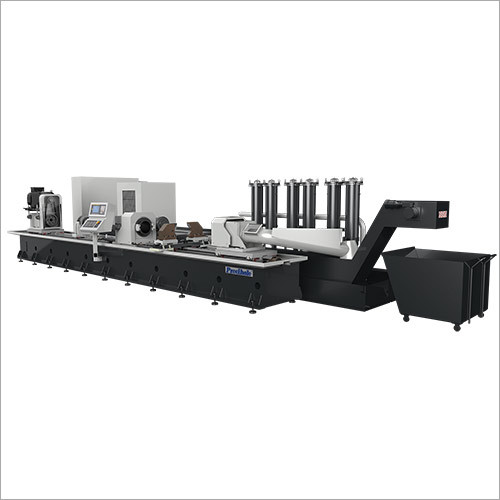

Skiving and Burnishing Machine

Skiving and Burnishing Machine
Skiving and Burnishing Machine
Product Code : 06
Product Description

Specifications of Skiving and Burnishing Machine

  • Capacity range is 40 mm to 350 mm diameter and depth of up to 6000 m
  • Coolant Flow is 600, 1000 LPM and 159, 264 GPM
  • Tank Capacity is 4000, 6000 L and 1057, 1585 G
  • Suitable for manufacturing small and large components
  • Automatic loading and unloading of components (optional)

How We Assist Clients For Skiving and Burnishing Machine

We assist clients with the following activities:

  • Installation
  • Training
  • Documentation
  • Process engineering
  • Tooling
  • Work holding

Special Features of Skiving and Burnishing Machine :
  • Axis motion on LM guides: The guides are preloaded and here the axis feed motion is carried.
  • Fabricated Heavy Duty Base: It is made using fabricated steel structure and is completely stress relieved, machined as well as scraped.
  • Linear Motion on Ball-screw / Rack & Pinion
  • High Pressure Coolant System / Displacement Pumping System
  • Fine Coolant Filtration System: Coolant is transferred to tank via baffles after which multistage filtration is done.
  • CNC Control: FANUCCNC controllers are provided that are programed specifically for individual clients.
  • Centralized Lubrication System
  • Infinitely variable Feed, RPM & Coolant Flow
Skiving and Burnishing Machine

Model

SBN150

SBN250

Skiving & Burnishing Range

mm

Ø30-Ø150

Ø50-Ø250

in

Ø1.2-Ø6

Ø2-Ø10

Skiving & Burnishing Length

mm

1000-10000

in

40-394

Configuration


Tool rotaing and feeding part stationary

Tool Head




Spindle Power

kw

37

60

hp

50

80

Spindle Speed Range

rpm

80-1800

50-1200

Pressure Head Carriage




Max. Clamping Force

kn

20

35

Coolant System




Coolant Flow

LPM

600

1000

GPM

159

264

Tank Capacity

L

4000

6000

G

1057

1585

Coolant Pump Power

kw

11

50

hp

15

67
