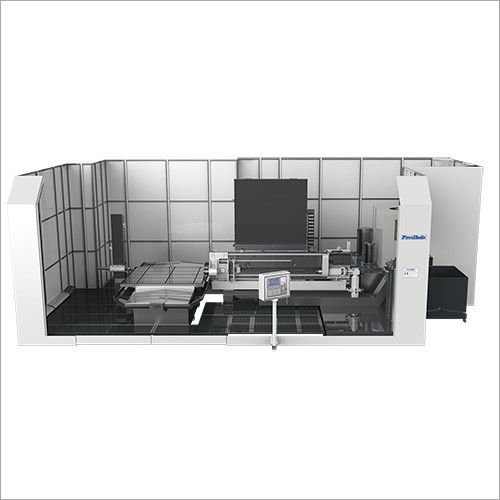

Column Type Three Axis Gun Drilling Machines

Column Type Three Axis Gun Drilling Machines
Column Type Three Axis Gun Drilling Machines
Send Inquiry
Product Code : 00
Product Description

Features

  • Precihole offers Skiving & Burnishing machine with capacity from Dia. 40 to 350mm and up to 6000mm deep.
  • This High Production Machine is ideal for manufacturing large as well as small batch of components.
  • Automatic Loading, Unloading of Component can also be incorporated.
  • Professional Installation, Training, Documentation and Process engineering are all provided by Precihole to successfully adapt the machine at customer site.
  • Tooling and work holding are provided to suit your component.
  • Professional Installation, Training, Documentation and Process engineering are all provided by Precihole to successfully adapt the machine at customer site.


Specifications Of Column Type Three Axis Gun Drilling Machines:

Model

PMTC25D, PMTC40D, PMTC65D

Max Weight of Mold Plate:

8000, 15000, 20000 kg

Drilling Stroke

1000, 1500, 2000 mm

Drilling Size:

5-25, 8-38, 8-65 mm

Table Size

1000x1000, 1500x1500, 2000x2000 mm

Spindle Power (Drilling)

9, 15, 12 kW

Spindle Power (Milling)

9, 15, 15 kW

X Axis

1000, 1500, 2000 mm

Y Axis

1000, 1000, 1500 mm

B Axis

360 deg.

W Axis

450, 600, 750 mm

No. of Axis

3-7

Angular Movement

15, 20 deg.
