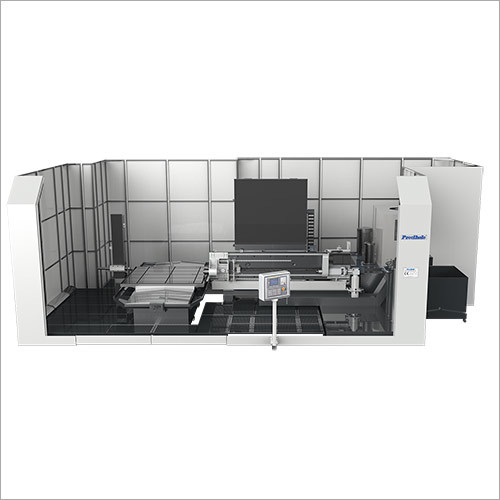

Column Type Three Axis Gun Drilling Machines

Column Type Three Axis Gun Drilling Machines
Column Type Three Axis Gun Drilling Machines
Product Code : 01
Product Description
  • Precihole offers Skiving & Burnishing machine with capacity from Dia. 40 to 350mm and up to 6000mm deep.
  • This High Production Machine is ideal for manufacturing large as well as small batch of components.
  • Automatic Loading, Unloading of Component can also be incorporated.
  • Professional Installation, Training, Documentation and Process engineering are all provided by Precihole to successfully adapt the machine at customer site.
  • Tooling and work holding are provided to suit your component.
  • Professional Installation, Training, Documentation and Process engineering are all provided by Precihole to successfully adapt the machine at customer site.
Specifications:
  • Model: PMTC25D, PMTC40D, PMTC65D
  • Max Weight of Mold Plate: 8000, 15000, 20000 kg
  • Drilling Stroke: 1000, 1500, 2000 mm
  • Drilling Size: 5-25, 8-38, 8-65 mm
  • Table Size: 1000x1000, 1500x1500, 2000x2000 mm
  • Spindle Power (Drilling): 9, 15, 12 kW
  • Spindle Power (Milling): 9, 15, 15 kW
  • X Axis: 1000, 1500, 2000 mm
  • Y Axis: 1000, 1000, 1500 mm
  • B Axis: 360 deg.
  • W Axis: 450, 600, 750 mm
  • No. of Axis: 3-7
  • Angular Movement: 15, 20 deg.
