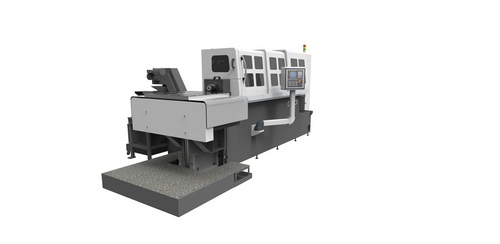

3 Axis Gun Drilling Machine

3 Axis Gun Drilling Machine
3 Axis Gun Drilling Machine
Product Code : XYGVN
Brand Name : Precihole
Product Description
  • Precihole offers new series of 3 Axis Gun Drilling Machines from Dia. 4mm to 25mm and up to 1000mm deep.
  • X Stroke - 500mm, Y Stroke - 300mm.
  • Modular Design ensures quicker delivery and off the shelf spares availability.
  • The Company also offers custom solutions to suit your requirements.
  • Tooling and work holding are provided to suit your component.
  • Professional Installation, Training, Documentation and Process engineering are all provided by Precihole to successfully adapt the machine at customer site.
  • Model: XYGVN12, XYGVN25, XYGVN40
  • Drilling Diameter Range: Ø2-Ø12 Ø5-Ø25, Ø8Ø40 mm
  • Drilling Depth: 600 / 1000 mm
  • Drill Feed Range: 0-1000 mm/Min
  • Power per Spindle: 2.2, 7.5, 15 kW
  • Rapid Traverse: 8 m/Min
  • Spindle Speed range: 1000-1200, 600-6500, 300-3200 rpm
  • Working Envelope: 500 (W) x 300 (H)
  • X Axis Travel x Y Axis Stroke: 500x300 mm
  • Max Component Weight on Table: 1000 kg
  • Spindle Center Height from Table Top: 50-350 mm
